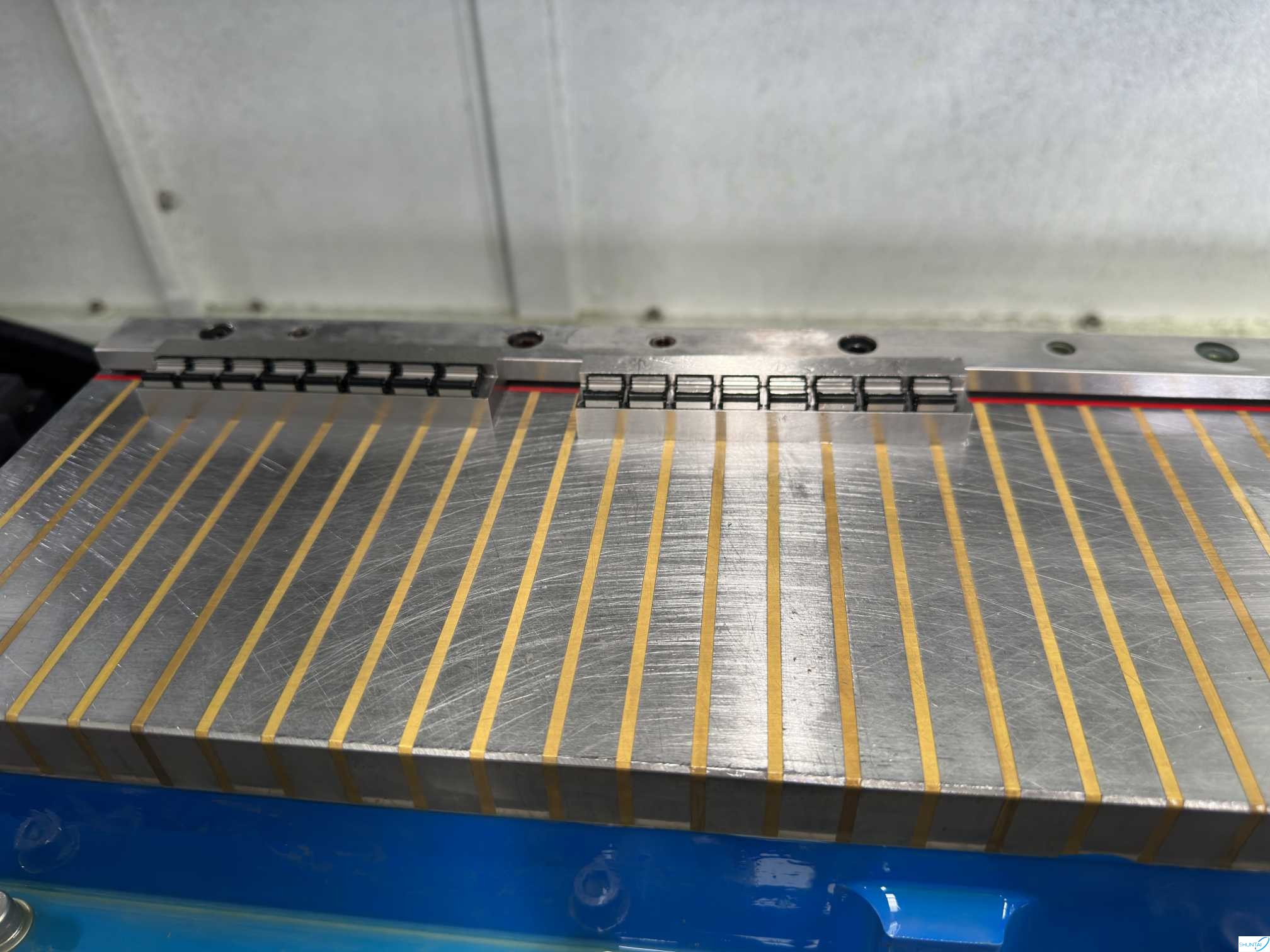

Our factory equipment

Miniature linear guides are compact linear motion devices for high-precision linear motion in limited spaces. It usually consists of a guide rail and a slider, which is used to allow the slider to slide smoothly and precisely on the guide rail. Miniature linear guides are suitable for applications requiring small-scale, high-precision linear positioning and motion control, such as automation equipment, electronic assembly, medical equipment, optical instruments, etc.

Key Features and Benefits:

Compact design: The compact design of miniature linear guides is suitable for installation and use in limited spaces.

High Accuracy: Thanks to precision machining and engineering, miniature linear guides are capable of providing high precision linear motion, typically in the range of a few microns or less.

Low friction: Using high-precision bearing system and lubrication technology, miniature linear guides can reduce friction when sliding and provide smooth motion.

Stability: The structural design of the miniature linear guide can provide stable movement, reduce vibration and shaking, and help maintain positioning accuracy.

Repeatability: Due to the precision of its design and manufacture, the miniature linear guide can maintain the same positioning accuracy in multiple movements and has good repeatability.

Diverse applications: Miniature linear guides are widely used in many fields, such as semiconductor manufacturing, medical equipment, electronic assembly, optical equipment, precision measuring instruments, etc.

Accessories and integration: Miniature linear guides often allow the integration of additional components such as sensors, limit switches, motor drives, etc. to achieve higher levels of automation and control.

When installing and using miniature linear guides, it is important to follow the installation manual and operating instructions provided by the manufacturer to ensure proper assembly and optimum performance. Different brands and models of miniature linear guides may differ in design and operation, so operators should be familiar with the characteristics and requirements of specific products.
