A Linear guide is a precision guide used in mechanical systems to provide smooth and accurate linear motion. It usually consists of two parts: rails and sliders.

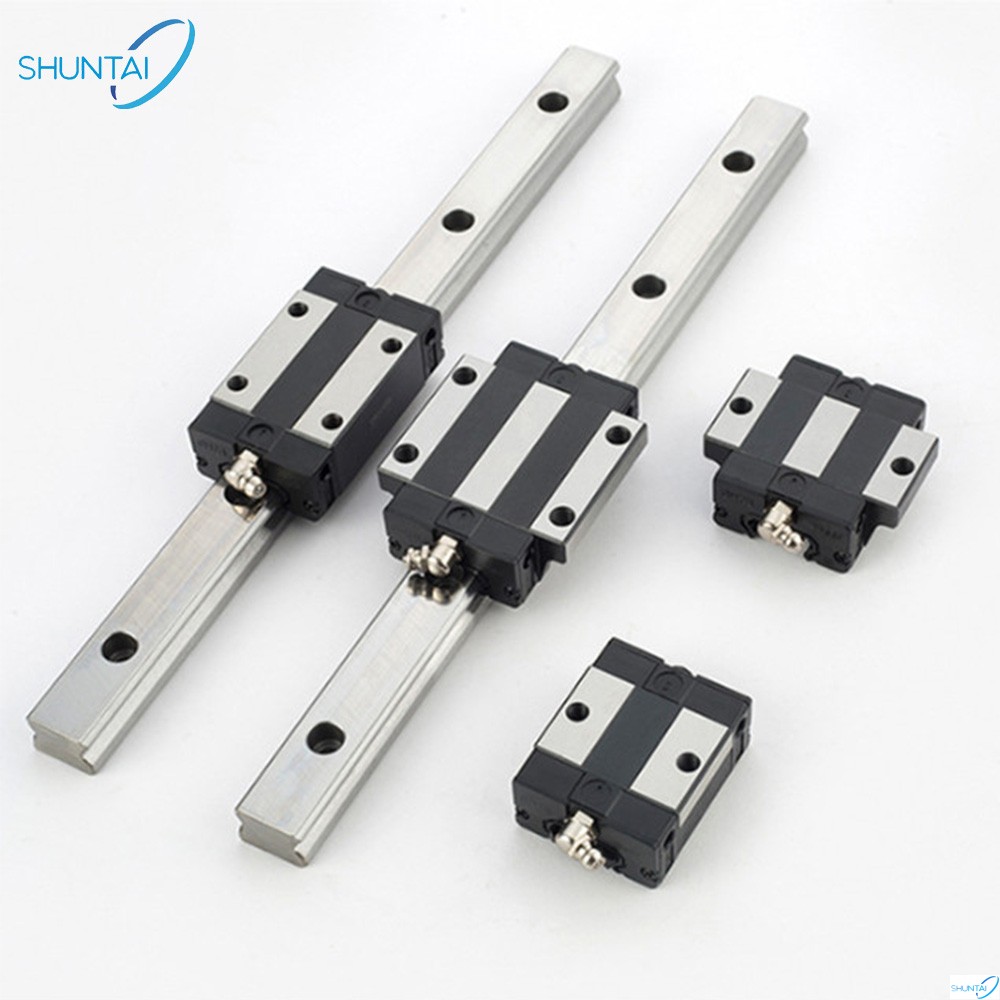

Product name | Linear Guideway Rail |
Model Number | STW CA/SA |
Brand Name | SHUNTAI |
Core Components | Bearing, Gearbox, Motor, Gear |
Application | Automatic System |
Feature | Long Operating Life |
Delivery | 7 Days |
Shipping Port | Shanghai |
Please watch the video of our Linear Guides
The primary purpose of linear guides lies in their ability to enhance precision, stability, and smoothness in a wide range of applications.
These exceptional devices serve as the cornerstone for seamless motion control across various industries.

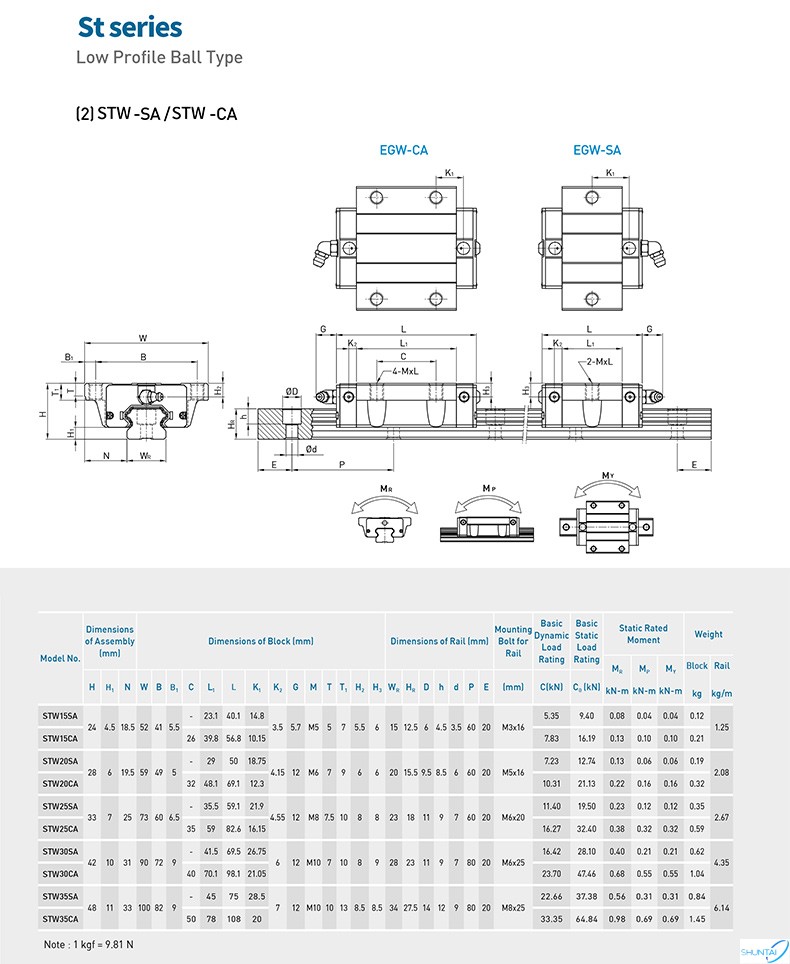

Please view the data sheet of our linear guide rails
Linear guides are widely used in various industries and fields, the following are some common uses:
1. Machine tool industry: Linear guide rails are often used in various mechanical equipment such as CNC machine tools, milling machines, lathes, and grinding machines to achieve precise linear movement of workpieces and tools to ensure high-precision processing.
2. Automation equipment: Linear guide rails are widely used in various equipment on automated production lines, such as handling robotic arms, assembly equipment, material handling equipment, etc., to achieve accurate position positioning and motion control.
3. Electronic equipment: Linear guide rails are used for optical module assembly of electronic equipment, plasma cutting equipment, semiconductor equipment, etc., to ensure high-precision assembly and positioning accuracy.
4. Medical equipment: Linear guides are used in medical equipment, such as surgical robots, CT scanners, X-ray equipment, etc., to achieve accurate positioning and movement of medical equipment.
5. Flat printers and 3D printers: Linear guide rails are used in flat printers and 3D printers to ensure the precise movement of the printing head or printing platform to ensure the accuracy and quality of printing.
6. Optical equipment: Linear guides are widely used in optical equipment, such as microscopes, laser cutting machines, optical fiber welding machines, etc., to achieve high-precision positioning and movement of optical components.
7. Robots and automation systems: Linear guides are used in industrial robots and automation systems to achieve accurate control and movement of robot arms, transportation devices, etc.
In general, linear guides play an important role in various applications that require linear precision motion and position control, and can provide high-precision, high rigidity and stable linear motion trajectory to meet the requirements for accuracy, repeatability and reliability requirements.
