Ball screw SCNI CNC lathe heavy-duty high spiral c5

Ball screw SCNI CNC lathe heavy-duty high spiral c5

The ball screw can share the load during the rolling process, which improves the rigidity and bearing capacity of the system.





Product name Ball screw
Model Number SCNI
Brand Name SHUNTAI
Material  GCr15 Bearing steel, Steel, Bronze
Manufacturing Process Rolled screw, ground screw
Feature Long Operating Life
Delivery 7 Days
Shipping Port  Shanghai



Please See our video on non-flange ball screws

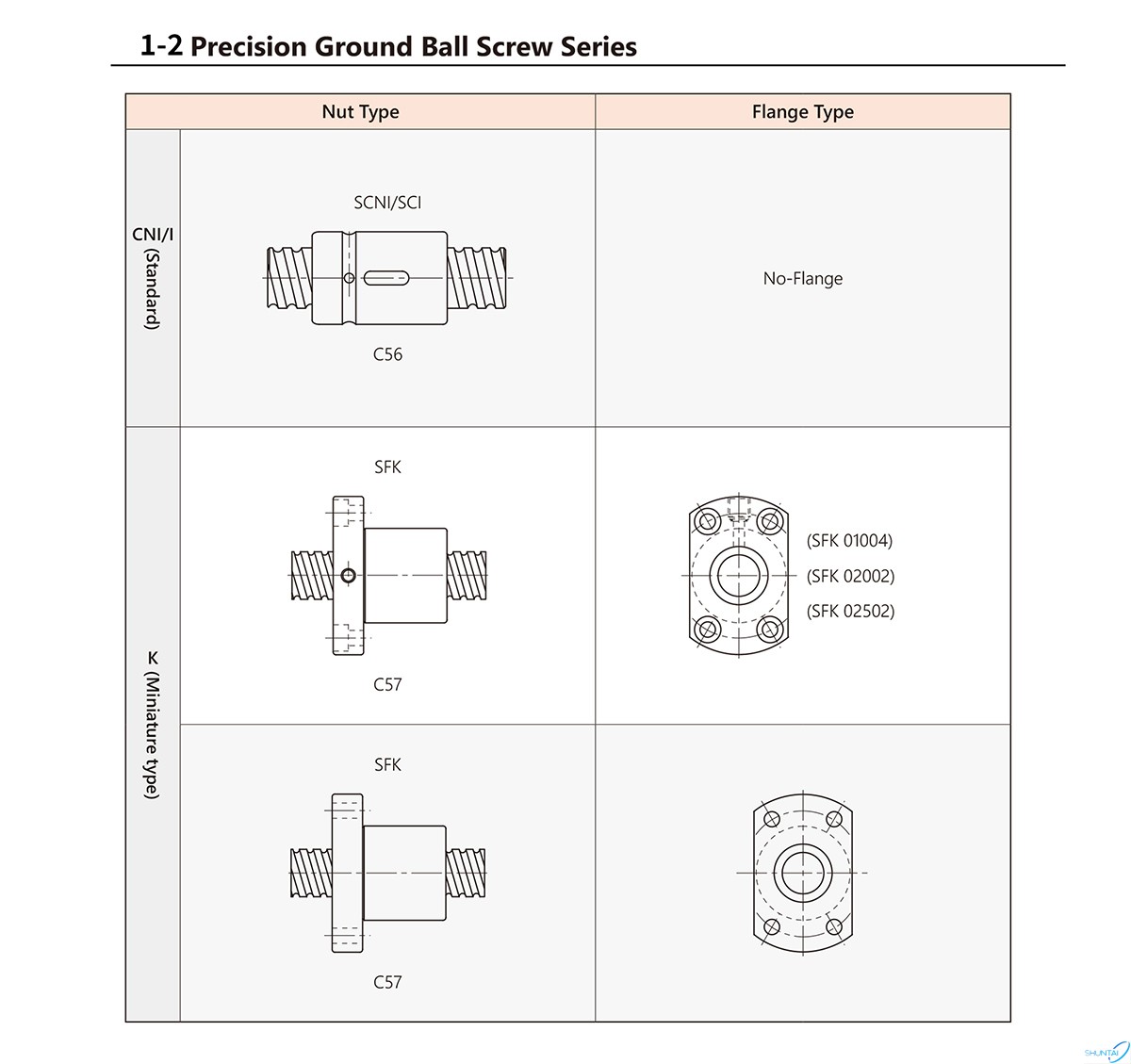

Please see our non-flange ball screw data sheet
Cool Type II ball screw

feature
The principle of the Cool Type ball screw product series is to pass the forced cooling liquid in the nut to reduce the heat generation and thermal expansion when the ball screw operates at high speed, so as to achieve the purpose of high speed and high precision.
The liquid circulates in the cooling space designed in the nut and exchanges heat with the cooler shown in Figure 8.8. This type of product is very suitable for application in electric-driven injection machines, stamping machines and other power units that can replace hydraulic systems. Compared with standard nuts, Cool type II nuts have different outer diameters. Please contact HIWIN for detailed specifications.

performance
This type of product is very suitable for application in electric-driven injection machines, stamping machines and other power units that can replace hydraulic systems.
